1.2W/m.K Thermal conductive adhesive transfer tape for LED light

FOB Reference Price:Get Latest Price
$0.10 - $30.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan, China
Brand Name:
T-Global
Model Number:
Li2000
Type:
Insulation Tape
Material:
Fiberglass
Rated Voltage:
2KV
Application:
High Temperature
Tensile Strength:
6N/mm2
Thermal Conductivity:
1.2W/m.K
Thickness:
0.15mm/0.25mm
Short Time Use Temperature:
288 degree Celsius
Continuous Working Temperature:
-45 to 170 degree Celsius
Initial Tack:
10 cm
Lap Shear Strength:
74 N/cm2
Standard package:
in sheets
Supply Ability
Supply Ability:
5000 Square Meter/Square Meters per Day
Packaging & Delivery
Packaging Details
All thermal tapes with release liner and packed with carton box, or plastic bags, or customized packing
Port
Keelung







Product Description

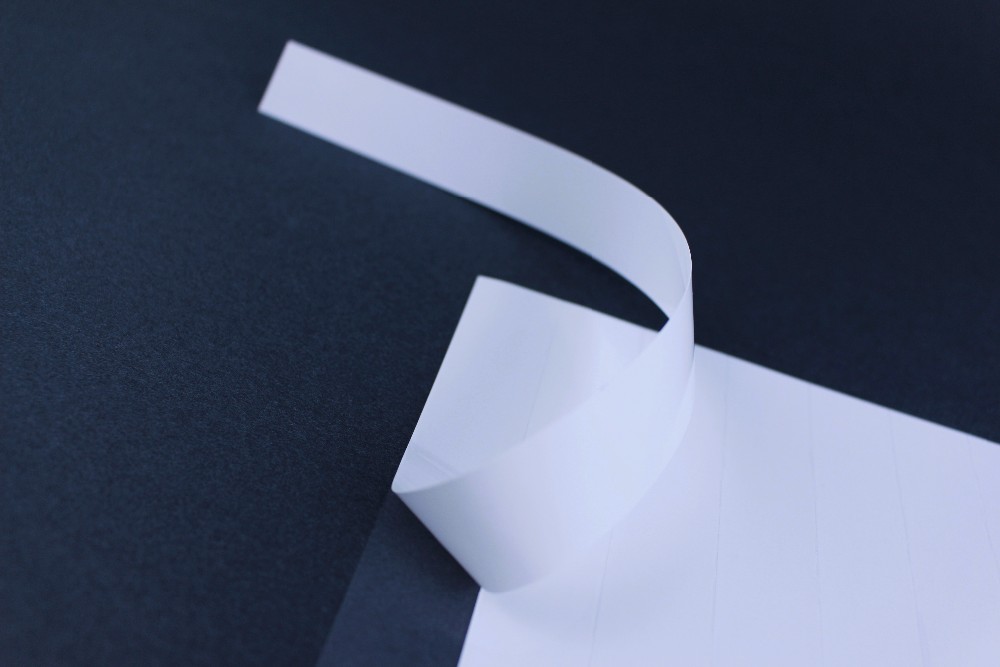

1.2W/m.K Thermal conductive adhesive transfer tape for LED light

Li2000



Li2000 1.JPG



Features

Good adhesion (Silicone PSA)

Low contact thermal impedance

High bond strength

High temperature- long term stability

Electrical insulation

REACH Compliant

RoHS Compliant



Applications

Electronic components: IC, CPU, MOS

LED, M/B, P/S, Heat Sink,

LCD-TV, Notebook PC, PC, Telecom Device, Wireless Hub…..etc

DDR ll Module, DVD Applications, Hand-set applications…..etc





Properties



Physical PropertiesLi2000UnitToleranceTest Method
Thermal Conductivity1.21.2W / mK±0.12ASTM D5470
Thickness0.150.25mm-ASTM D374
ColorWhiteWhite--Visual
Reinforcement CarrierFiberglass---
Continuous Working Temperature-45~170-45~170°C--
Short time Use Temperature (30sec)288288°C--
Density1.61.6g / cm3-ASTM D792
Initial Tack1010cm-PSTC-6
Lap Shear Strength7476N / cm2-D1002
Die Shear Strength @25°C 113126N / cm2--
Die Shear Strength @80°C8085N / cm2--
Die Shear Strength @150°C3035N / cm2--
Holding Power 1000g@25°C using 1 in2>40000>40000min-PSTC-7
Holding Power 1000g@80°C using 1 in2>40000>40000min-PSTC-7
Holding Power 1000g@150°C using 1in2>10000>10000min-PSTC-7
Tensile Strength450650psi-ASTM D412
Dielectric Breakdown Voltage(Vac) 23KV±10%ASTM D149
Dielectric Breakdown Voltage (Vdc)34KV±10%ASTM D149
Volume Resistance>1012>1012Ohm-m-ASTM D257
Thermal Impedance@ 10psi0.701.17°C-in2 / W-ASTM D5470
Thermal Impedance@ 30psi0.681.13°C-in2 / W-ASTM D5470
Thermal Impedance@ 50psi0.631.07°C-in2 / W-ASTM D5470
Flame RatingV-0V-0--UL 94







Configurations available: 300mm*300mm, specific size could be provided according to your requirements.


Packaging & Shipping

   -Packaging: Export standard packing

   -Shipping: FOB Taiwan, EMS / DHL / FedEx / according to your request


Our Services

  We provide free samples for testing. Please feel free to contact our sales.

  We can offer competitive prices and after sales services.


Company Information



About T-Global

T-Global Thermal Technology is dedicated to the development, manufacture and marketing of high-performance thermal interface materials. We pride ourselves on rapid sampling, flexible production methodologies and world-class technical support to our customers. We have significant experience in the thermal management arena and look forward to working with our customers, wherever they are in the world, and however demanding their needs are. And now, our products have been sold in more than 2,000 global customers.


It is a major subject for thermal engineering of electronic, optronics , automotive, lighting industries to use thermal interface materials. T-Global Technology dedicates to develop, manufacture and provide our own thermal interface materials. More than 10-years experience, T-Global Technology keeps providing excellent parts, rapid and flexible service for customers.We are on the way to be the best company in the industry.


T-Global's products have been shown to be efficient and reliable in customers such as: HP, Sony, Siemens, Sharp, Panasonic, Alcatel-Lucent, Asus, NEC, Bosch, Gigabyte, Jabil, Magna, Wistron, Sagem, Chimei-Innolux, CPT, Hannstar, Foxconn, Flextronics, AUO, AOC, D-link, TDK-Lambda, Delta, Liteon, HTC, LG, Cisco etc.

T-Global Technology
Professional manufacturer of thermal interface materials
Since 2003

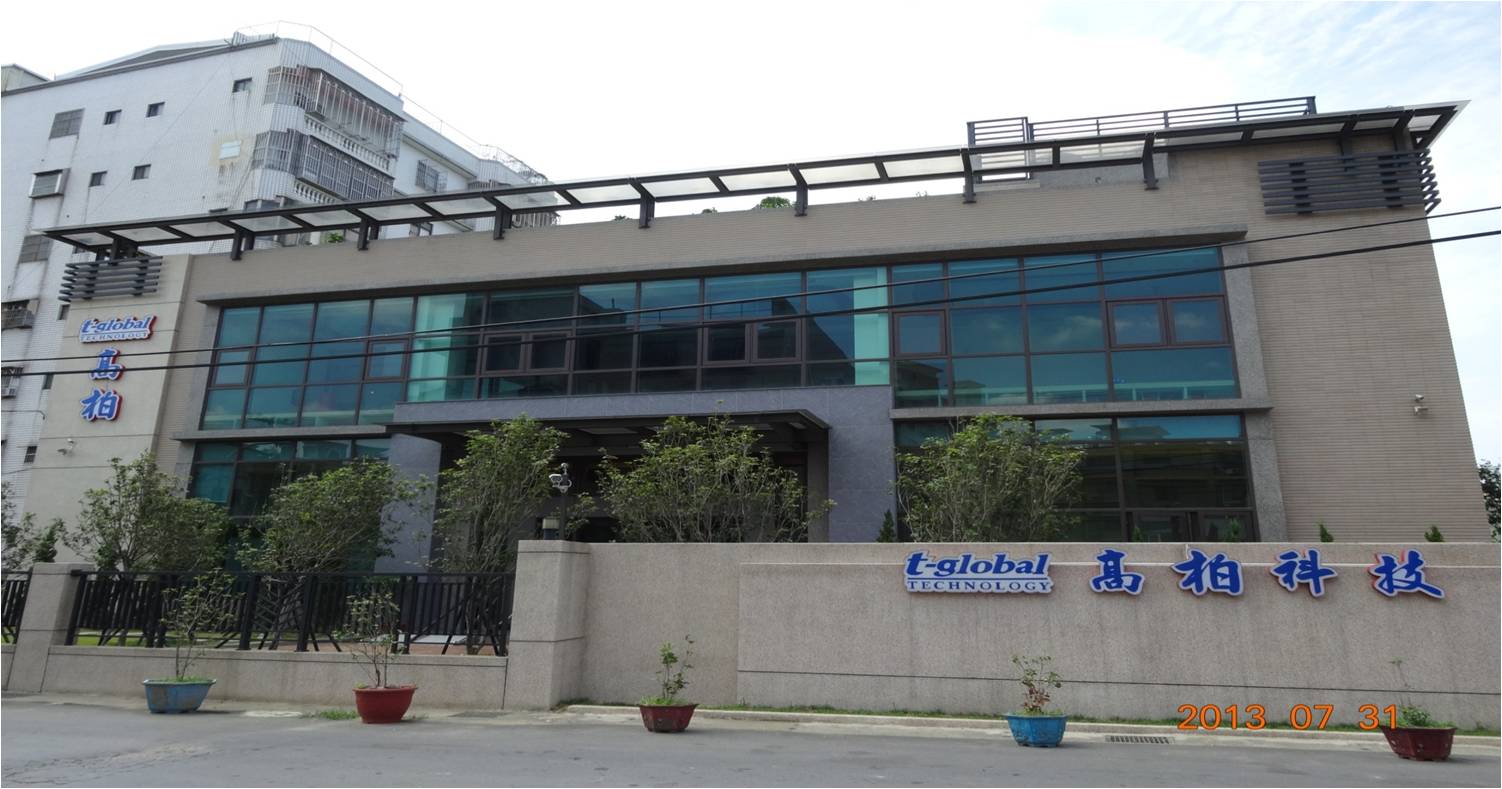

Head Office appearance


Head Office appearance

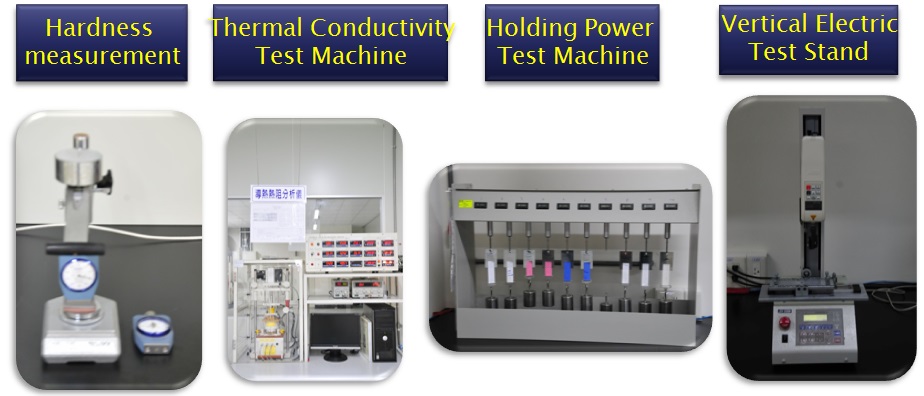

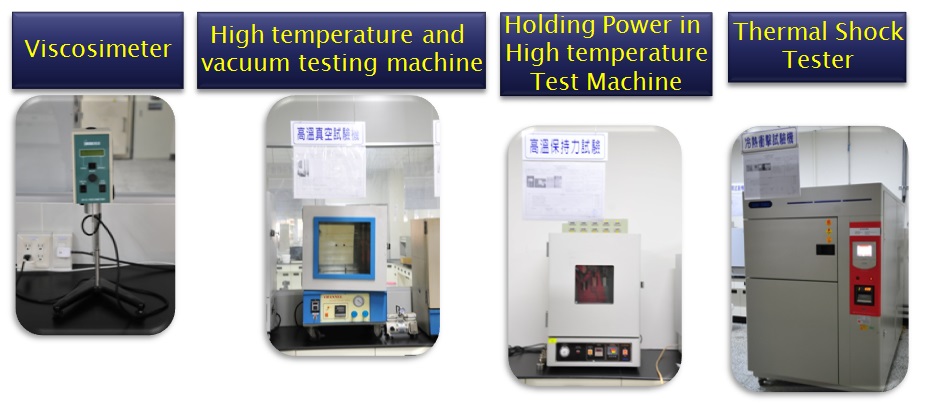

Laboratory Equipments



testing machines.jpg
 testing machines 2.jpg

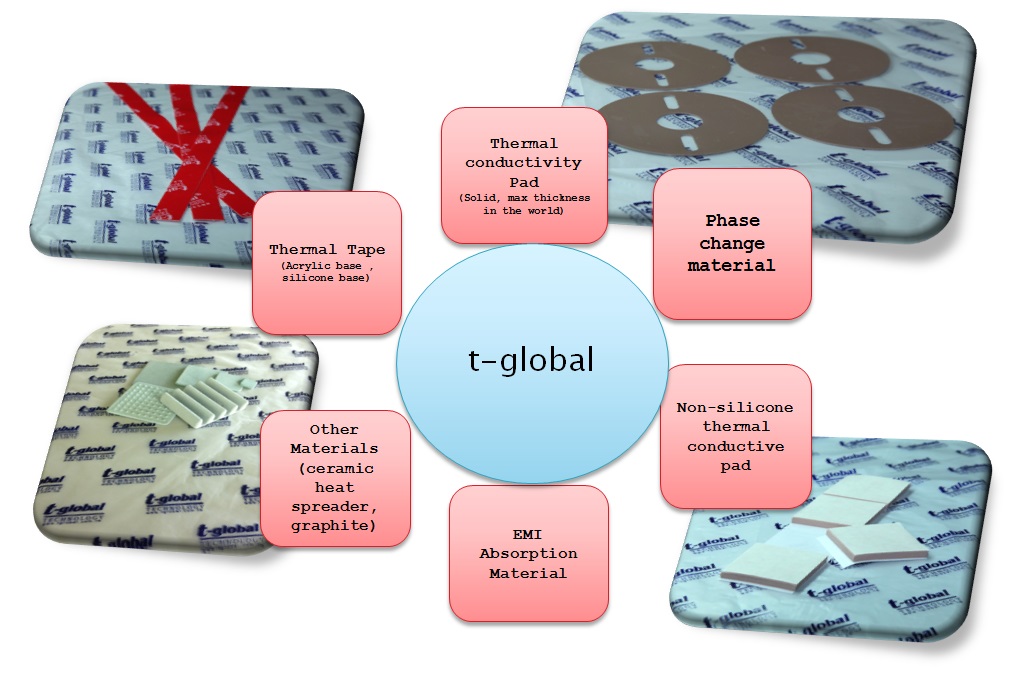

Our Products

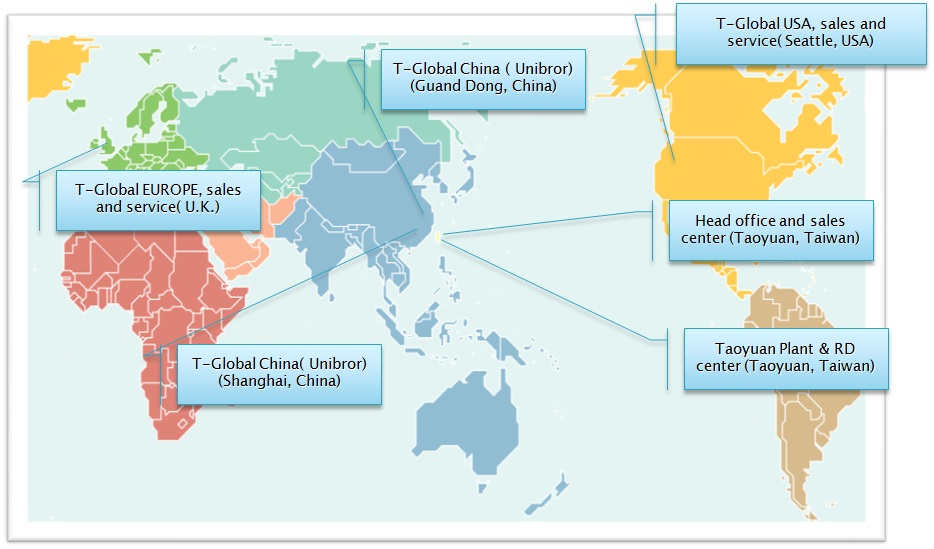

Our Locations



FAQ

Q: How do I place an order?

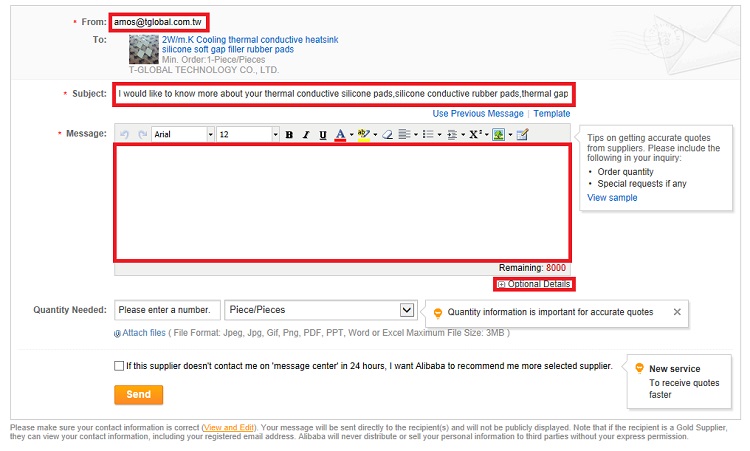

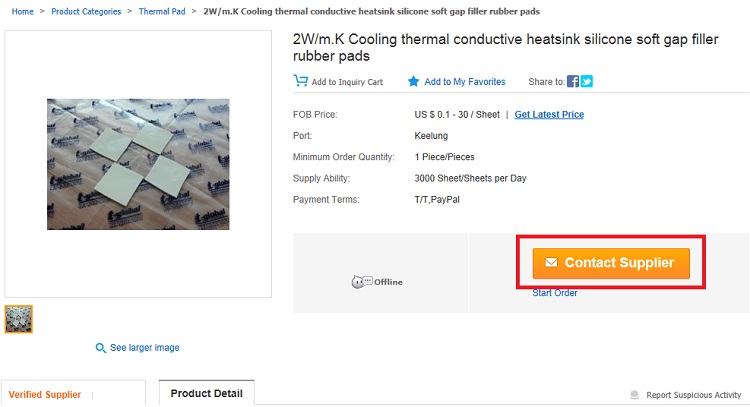

A: 1. Click the “Contact Supplier” button to continue with the process.


   2. Fill out the message form by entering a subject line, and message to us. This message should include any questions you might have about the products as well as your purchase request.

  • Optionally, you can click the “Optional Details” link to select price & terms, initial order quantity, sample terms and other requests such as specifications, delivery time, and company description.


   3. Click the “Send” button when you are finished to complete the process and send your message to us and retrieve any responses to your message in your Alibaba Message Center Inbox.

Q: How do I pay for my purchase?

A: We accept PayPal or T/T for online orders.

Q: How do I request samples?

A: To request samples, you must be registered in Alibaba. Click the “Contact Supplier” button to continue with the process. Fill out the message form by entering a subject line, and message to us. This message should include any questions you might have about the products as well as your sample request. We are pleased to provide free product, order processing, but we are not able to include shipping fee, so please kindly provide your courier account in the message.
