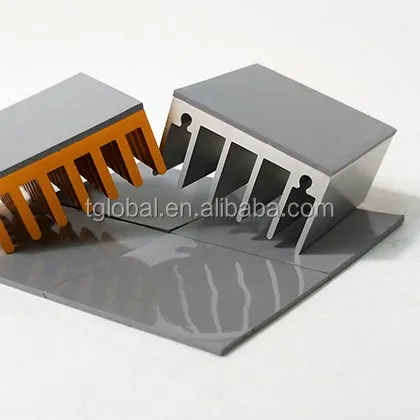

TG-A2200 ultra soft thermally conductive silicon heat transfer gap filler pad

FOB Reference Price:Get Latest Price
$0.01 - $1.50 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan, China
Brand Name:
T-Global
Model Number:
TGA2200
Type:
Insulation Sheet
Material:
Silicone, thermal conductive particles, and etc.
Application:
High Temperature,LED,CPU,IC and other electronic products
Rated Voltage:
5 KV/mm
Tensile Strength:
1 Kgf/cm2
Thermal Conductivity:
2.2 W/mK
Thickness:
0.5~2.0mm
Flame Rating:
94 V-1
Dielectric Breakdown Voltage:
5 KV/mm
Weight Loss:
<1%
Density:
2.7 g/cm3
Working Temperature:
-40~+180 degree Celsius
Elongation:
55%
Hardness:
15 Shore 00
Size:
Customized
Supply Ability
Supply Ability:
3000 Sheet/Sheets per Day
Packaging & Delivery
Packaging Details
All thermal pads with release liner and packed with carton box, or plastic bags, or customized packing
Port
Keelung
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description
You Deserve the Best
Product Description

Features

One side is non-sticky and easy to assemble
Ultra soft and good compressibility
Good insulation


 Configurations

  Size:100*50 mm
  Thickness: 1 mm

Application

Best for high power applications
Electronic components: IC, CPU, MOS, LED, Mother Board,Power Supply,Heat Sink,LCD TV,Notebook,PC,Telecom Device,Wireless Hub,DDR ll Module, DVD Applications, Hand-set applications etc.

Properties
TGA2200
Unit
Tolerance
Test Method
Thermal Conductivity
2.2
W / mK
±0.22
ASTM D5470
Thickness
0.5~2.0
mm
-
ASTM D374
0.0197~0.0787
inch
-
ASTM D374
Color
Gray
-
-
Visual
Flame Rating
V-1
-
-
UL 94
Dielectric Breakdown Voltage
5
KV / mm
±1
ASTM D149
Weight Loss
<1
%
-
ASTM E595
Density
2.7
g / cm3
             -
ASTM D792
Working Temperature
-40~ +180
°C
-
-
Volume Resistance
>1010
Ohm-m
-
ASTM D257
Elongation
55
%
-
ASTM D412
Standard Shape
Sheet ones
-
-
-
Hardness
15
Shore 00
±5
ASTM D2240

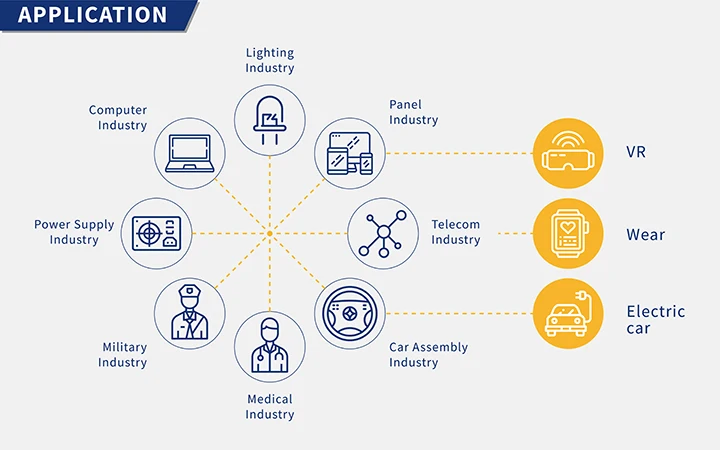

Application

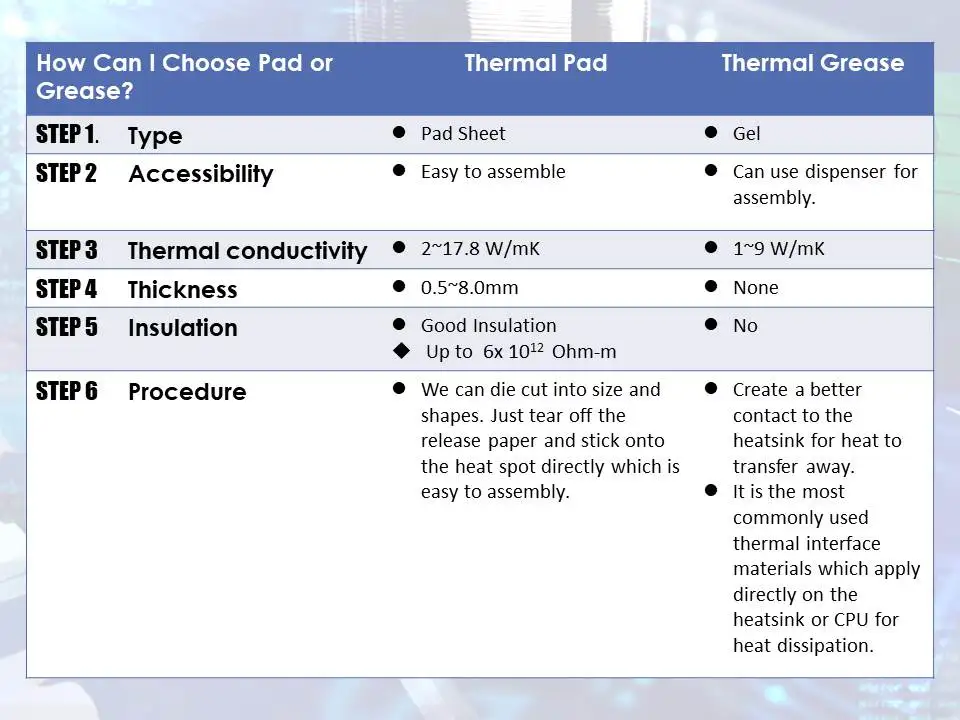

How Can I Choose Pad or Grease?
Follow the tutorials step by step so layman can choose suitable products easily by yourself!



Related Products

TGA3500

Thermal conductivity: 3.5 W/mK

TGA6200

Thermal conductivity: 6.2 W/mK

TGA4500

Thermal conductivity:  4.5 W/mK
Properties
   Thermal
conductivity
Thickness
Dielectric Breakdown Voltage
Hardness
2.2 W/mk
0.5~2.0 mm
5  KV / mm
15 Shore 00
3.5 W/mk
0.5~8.0 mm
6 KV / mm
30 Shore 00
4.5 W/mk
0.5~8.0 mm
6 KV / mm
50 Shore 00
6.2 W/mk
0.5~8.0 mm
6 KV / mm
50 Shore 00
12.5 W/mk
0.5~8.0 mm
6.5 KV / mm
50 Shore 00
14.5 W/mk
0.5~2.0 mm
4 KV / mm
60 Shore 00
16.6 W/mk
0.5~2.0 mm
5 KV / mm
65 Shore 00
17.8 W/mk
0.5~2.0 mm
4 KV / mm
65 Shore 00
Certifications
Logistics System
Our Company

T-Global Technology is dedicated to developing composite thermal solution and manufacturing superior thermal module for competitive market.

Our vast experience allows us to assist our customers best in thermal engineering field.

We serve customers with NO MOQ, customized products, full product line and flexible production which makes us be the best and reliable partner of you. Let's make your design more perfect!

FAQ

Q: How do I place an order?

1. Click the "Contact Supplier" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

    This message should include any questions you might have about the products as well as your purchase request.

3. Click the "Send" button when you are finished to complete the process and send your message to us and retrieve any

     responses to your message in your Alibaba Message Center Inbox.

Q: How do I pay for my purchase?
A: We accept PayPal or T/T for online orders.
Q: How do I request customized samples?
A: To request samples, you must be registered in Alibaba. Click the "Contact Supplier" button to continue with the process. Fill out the message form by entering a subject line, and message to us. This message should include any questions you might have about the products as well as your sample request. We are pleased to provide free product, order processing, but we are not able to include shipping fee, so please kindly provide your courier account in the message.

Q:Is there promotion price for big buyer?

A:Yes, we do have promotion price for big buyer. Please send us email for inquiry.
